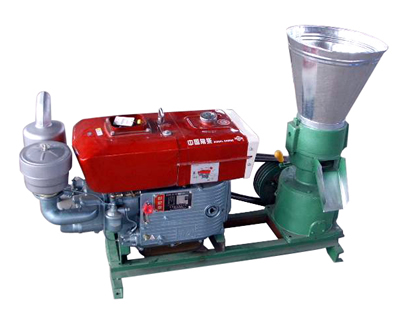

VOL-150A Flat Die Pellet Machine

Performance Features：
1.Transmission gears made of high quality alloy steel,surface adopts carburizing and quenching treatment,precision machining by grinding,smooth transmission,low noise,large carrying capacity,low temperature rise,long life etc.
2.Spindle with a heavy thrust bearing,suport axial force,long lifespan.
3.Roller and flat die wear peace deal;both sides can use the flat die,long service life.
4.Pellet machine uses large diamteter roller,big yield,pelletizing rate is high,uniform high strength pellets.
5.All bearings are sealed structure that effectively prevent dust,improve the working bearings environment,extending bearing life.
6.Highest grade tool steel die and rollers that are designed to fit YOUR PRODUCT.
7.Full consultation at NO CHARGE at YOUR FACILITY!
8.Low wear of roller,dies and bearings.
9.Do not need to add binder.
10.Pellets diameter is from 6-12mm for user select.
11.Easier to clean than pellet machine with ring die.
12.Small and lightweight,available for homemade or farm pellet production.
13.High adaptability to different raw material:sawdust,plastec,foam,wheat,barley,cotton,fiber waste,branch,bamboo,wheat straw,hay,peanut shell,paper,sorghum,algae,feed,fertilizer,rick husk,sun flow sterm,palm kernel shell and other biomass materials.

Parameters:

A Brief Description of Pellet Machine
Pellet machine offers an easy way to make biomass material into pellets, such as straw, sawdust and grass. The design of pellet machines is varied. Flat die type and ring die type are the two core design of pellet making machine. But from the very start, in 20th century, there are only pellet machine with flat dies and ring die design comes afterwards.
The functions of pelletizer also changed from feed pellets to fuel pellets like straw pellets and sawdust pellets among these years. Up until 1970's when the first test on producing wood pellets, pellet machine started to be focused on making biomass fuel.
The application of pellets for heating was recognized within the last decade due to the climate change and global warming. As the characteristic of low consumption, low costs and high efficiency, pellet machine gets popular for making wood/Straw/Sawdust/Grass pellets.
