YK Dryer

Dryer model YKJ-I, YK-II, YK-III for lower moisture content 12-25%

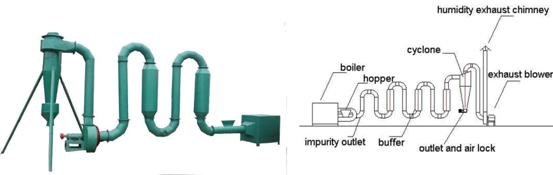

The Moisture reducing rate of the dryer YK-I, YK-II, YK-III is 8-12%. This dryer is equipped with one hot air boiler, it is suitable for drying raw material with moisture content less than 20-25%.If the moisture content of the raw material is higher than that, it will need two or three times of dry up to achieve the requested moisture content for briquetting.



Model YK-II YK-III
Capacity(Kg/hour) 400-500KG 500-700KG
Size of Input Material (Diameter) < 3mm & < 5mm < 3mm & < 5mm
Temperature of Hot Air 180°C~250°C 180°C~250°C
Consumption of Wood Waste 25-30kg/h 30-35kg/h
Power (Centrifugal Fan + Air Lock) 5.5kw+1.5kw 7.5kw+1.5kw
Net/Gross Weight 1200/1300kg 1800/1900kg
Dimension(m) 9×2×3.65m 11×2×3.65m
