TN Dryer

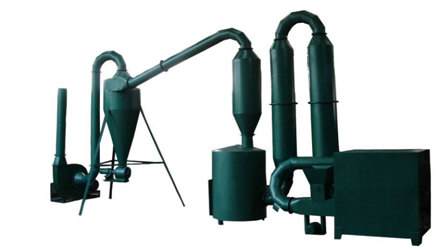

Twin boiler dryer model TN-I, TN-II, TN-III for higher moisture content 20-50%

Twin boiler dryer is a newly developed dryer with two hot air boilers, it is suitable for drying raw material with moisture a content of 20% -50%. It can reduce moisture from 20%-50% to 8-12% with only one passage or one time.
For raw material of moisture 20-35%, only fire and use the first boiler, no need to use the both.

Model TN-II TN-III
Capacity(Kg/hour) 400-500KG 500-700KG
Size of Input Material (Diameter) < 3mm & < 5mm < 3mm & < 5mm
Temperature of Hot Air 180°C~250°C 180°C~250°C
Consumption of Wood Waste 60kg/h 100kg/h
Moister content max % 20-50% 20-50%
Moisture of material after drying 8-12% 8-12%
Power (Air Fan + Air Lock+ speed adjustable feed motor) 7.5kw+0.75kw +0.75kw 11kw+0.75kw +0.75kw
Net/Gross Weight 2040/2260kg 2850/3080kg
Overall dimension(L*W*H) 9m*2.4m*4m 9m*3.2m*4m
Packing size 11 M3(3 cases) 14 M3(3 cases)
